Day 1
Motherboard (Day 1)
- Theory
This session was main part of the training, which provided a mass knowledge about motherboards, which included types of motherboards, functioning of motherboards, its structure, parts of motherboard , working of motherboard TIME: 00:37:30
Day 2
VRM THEORY (Day 2)
- Theory
VRM circuit basic architecture and how it work
Day 3
VRM PRACTICAL (Day 3)
- Practical

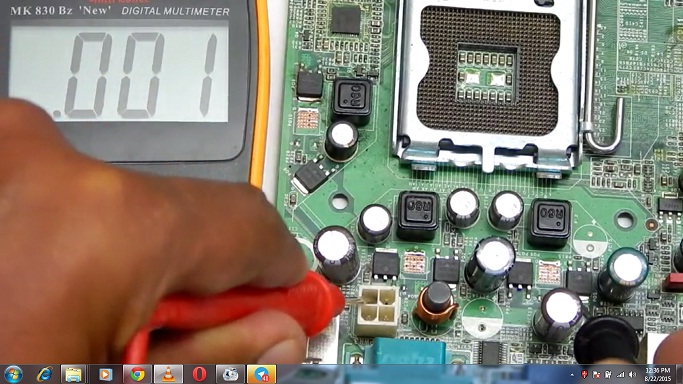

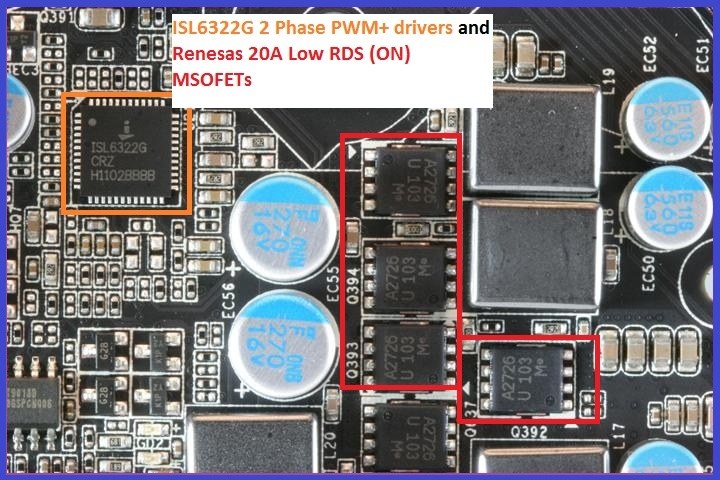

VRM PACKAGE , DRIVER IC , BUCK CONTROLLER IC , LINE FILTER , CAPACITOR IDENTIFICATION AND CONNECTION
Day 4
VRM SECTION 2 (Day 4)
- Theory

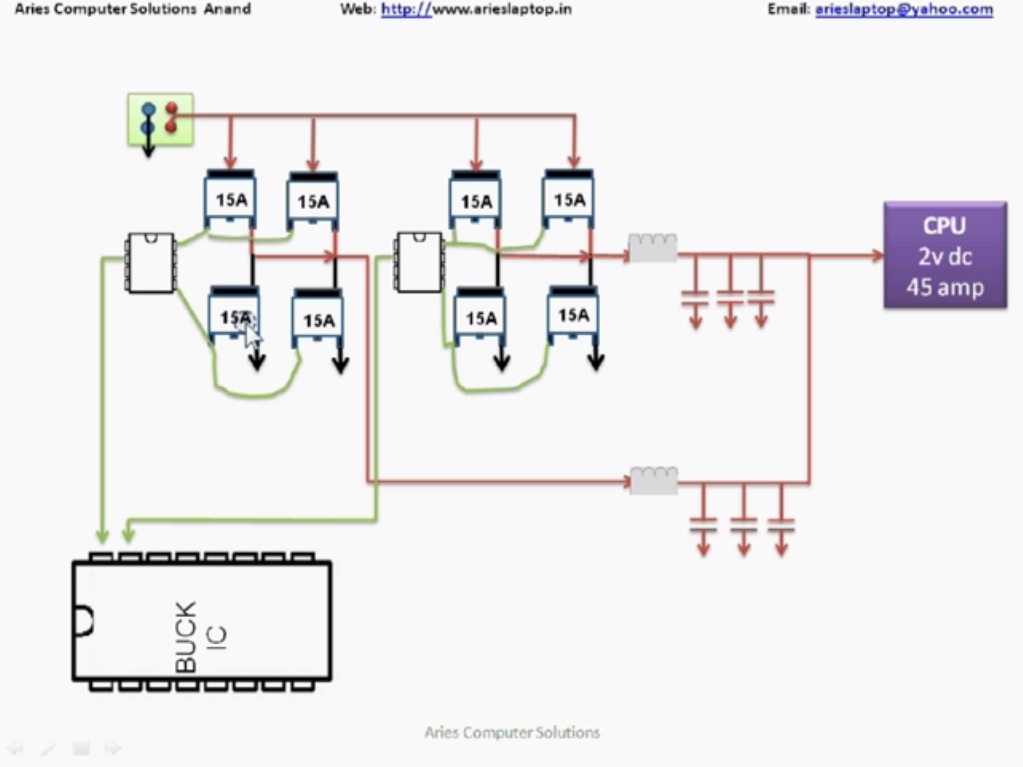

This session is included full detail of all types of vrm circuit like TGATE ,BGATE mosftet identification ,how to convert 12volt 5amp to 2volt 45-60amp, with using buck controller ic ,description of VID Signal,Powergood signal ,Load resistance etc. Fault finding in VRM section. TIME: 00:36:56
Day 5
IO PART1 (Day 5)
- Theory
This topic covered FDD,Keyboard,mouse circuit ,faultfinding flow chart , What is DMD,IRQ ? , LPC interface etc. TIME:00:53:58
Day 6
IO PART 2 (Day 6)
- Practical

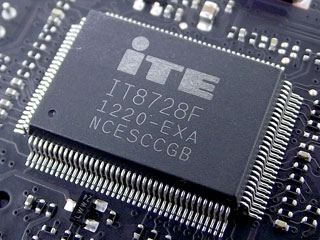

LPT PORT , ACPI INTERFACE ,HARDWARE MONITOR INTERFACE,CPU FAN ,The super I/O controller is connected to the south bridge using a special low-speed bus, and this architecture is called LPC (Low Pin Count). TIME: 01:07:53
Day 7
BIOS (Day 7)
- Practical

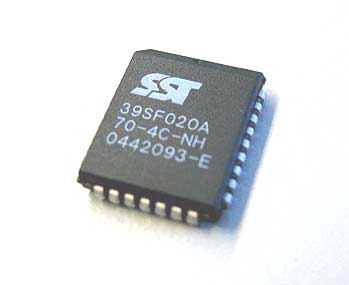

Basic input output system How to identify bios and how to program bios with bios programmer
Day 8
Memory (Day 8)
- Practical

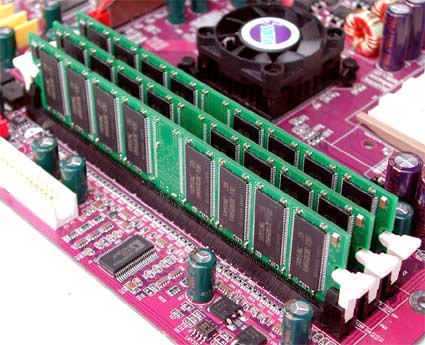

How to work memory,memory power supply faultfinding, ram section problem solution with easy flow chart. TIME: 01:11:43
Day 9
LAN, SOUND, USB, VGA (Day 9)
- Theory

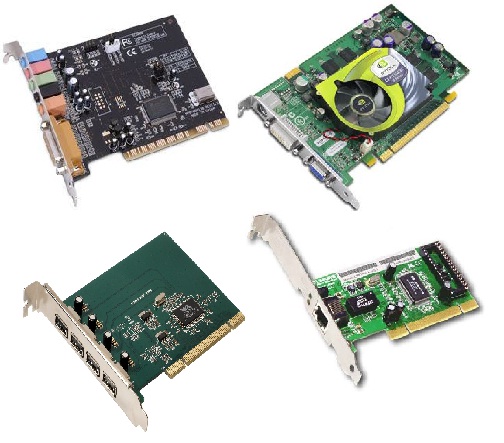

How to work lan,sound,usb and vga
Day 10

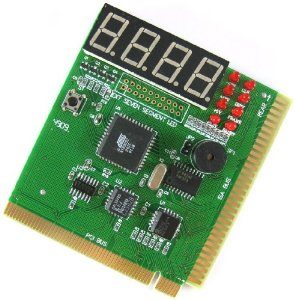

POST DEBUG CARD (Day 10)
- Theory
LED ERROR , POST ERROR,RESET PROBLEM , FRAME PROBLEMRAM PROBLEM ,BIOS PROBLEM , And many more solutions with fault finding flowchart . TIME: 00:55:01
DAY 11
RT809F TUTORIAL (DAY 11)
- Practical
RT809F BIOS PROGRAMMER TUTORIAL
Day 12
solder (Day 12)
- Theory
Solder skill
